IEE's CAN Bus family of keypads are designed for mission-critical military and rugged mobility platforms,
Our CAN Bus Display Control Modules provide reliable operator interface functionality in demanding ground vehicle and airborne environments. Combining sealed tactile controls, configurable RGB status indication, and advanced CAN communication capabilities, these units deliver dependable performance for integrated display and mission systems.
Engineered around the Controller Area Network architecture, these modules simplify subsystem integration while providing flexible control, diagnostics, and system monitoring across distributed vehicle electronics networks.
These CAN Bus display control modules are ideal for:
- Tactical vehicle display systems
- Vetronics integration
- Mission computer interfaces
- Rugged operator control panels
- Airborne mission systems
- Distributed vehicle electronics
- Situational awareness systems
- Mobile command and control platforms
Key Features:
Ruggedized Operator Interface

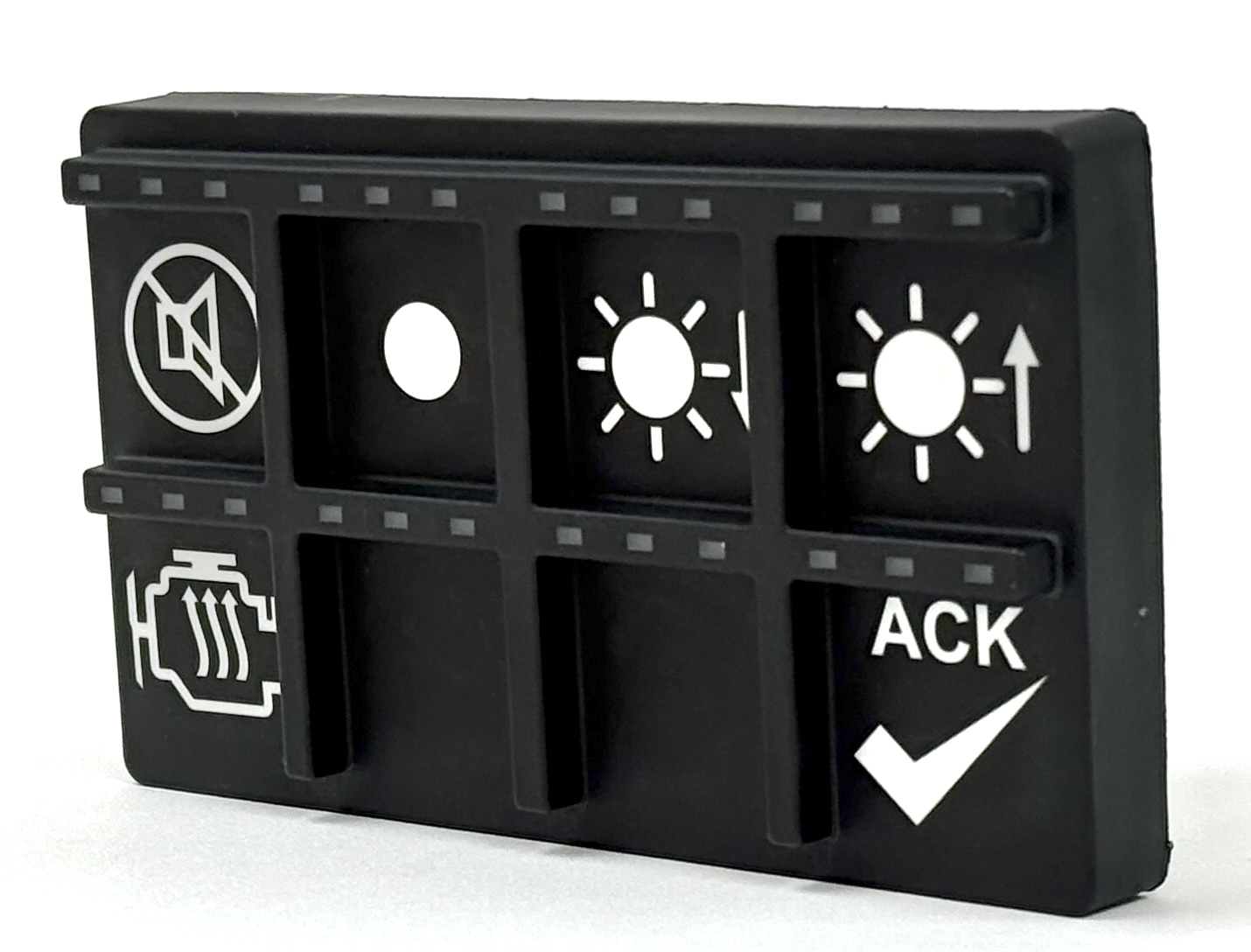

- 2x4 keypad configuration
- 8 sealed snap dome pushbuttons for tactile operator feedback
- Lightweight, sealed, and vented enclosure
- Designed for military ground vehicle and airborne applications
Enhanced Reliability & Protection
- Each pushbutton protected to ±15kV ESD
- Integrated 40ms debounce timing for stable input recognition
- Rugged construction for harsh operating environments
Advanced Visual Indication
- Dimmable keypad backlighting
- Configurable backlight colors available in:
- Red/Amber/Green/Blue color
Flexible CAN Bus Integration
Integrated SAE J1939 compliant CAN controller supporting:
- CAN Specification 2.0B
- Programmable bit rates
- Real-time message transmission and reception
- User-defined message priority levels
High-Capacity Message Management
- 32 configurable message FIFOs
- Up to 32 messages per FIFO for a total of 1024 total messages
- Configurable transmit or receive FIFO assignment
Advanced Filtering & Diagnostics
- 32 acceptance filters for message filtering
- Four acceptance filter mask registers
- Automatic response to Remote Transmit Request (RTR)
- Loopback and Listen-Only operating modes
- System diagnostics and bus monitoring support
- Dedicated timestamp timer
- Data-only message reception mode
Efficient Embedded Architecture
- CAN module operates as a bus master on the PIC32 system bus
- No DMA channels required for operation
- Low-power operating modes available
