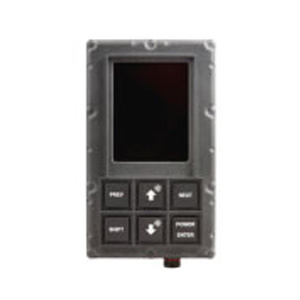

The ARM processor-based 3.5" Browser CDU has a QVGA color LCD display, a sealed 6-key keypad and dual mode (white and NVIS) backlight technology. The rugged, low power control display operates over a wide temperature range, and is sunlight readable as well as lightweight. The display uses an Ethernet 10/100Base-T for its communications interface.
Product Features and Specifications
- Display size: 3.5"
- Display technology: TFT color transflective LCD
- Character display configuration: 8x16 and 16x32 resident fonts
- Display resolution: QVGA 320 x 240 x RGB
- Display brightness: 100 cd/m2 typical
- Display viewing angle: Horizontal: +/-35º Vertical: +/-35º
- Contrast ratio: 20:1 typical (reflective mode), 150:1 typical (transmissive mode)
- Backlight technology: dual-mode backlight with adjustable intensity
- Communication interface: Ethernet 10/100 Base-T
- Web browser: HTML 5.0, Java VM
- Input power: 12 +/- 0.2 Vdc 400 mA maximum
- Power consumption: 3.0 W typical
- External dimensions: 3.84" x 6.509" x 1.62"
- Weight: 1.0 lbs
- Housing material: lightweight Ultem
- Operating temperature: -20"C to 70"C
- Storage temperature: -40ºC to 70ºC
- Maximum operating altitude: 36,000 ft
- Shock: transit shock
- Vibration: 0.04 g2/Hz, 20-2,000 Hz, 1 hour/axis, ground mobile
- Sealing/immersion: submersion to 1m for 2 hours
- EMI/EMC: Meets MIL-STD-461/462
