10.1 Inch Multi-Function Display

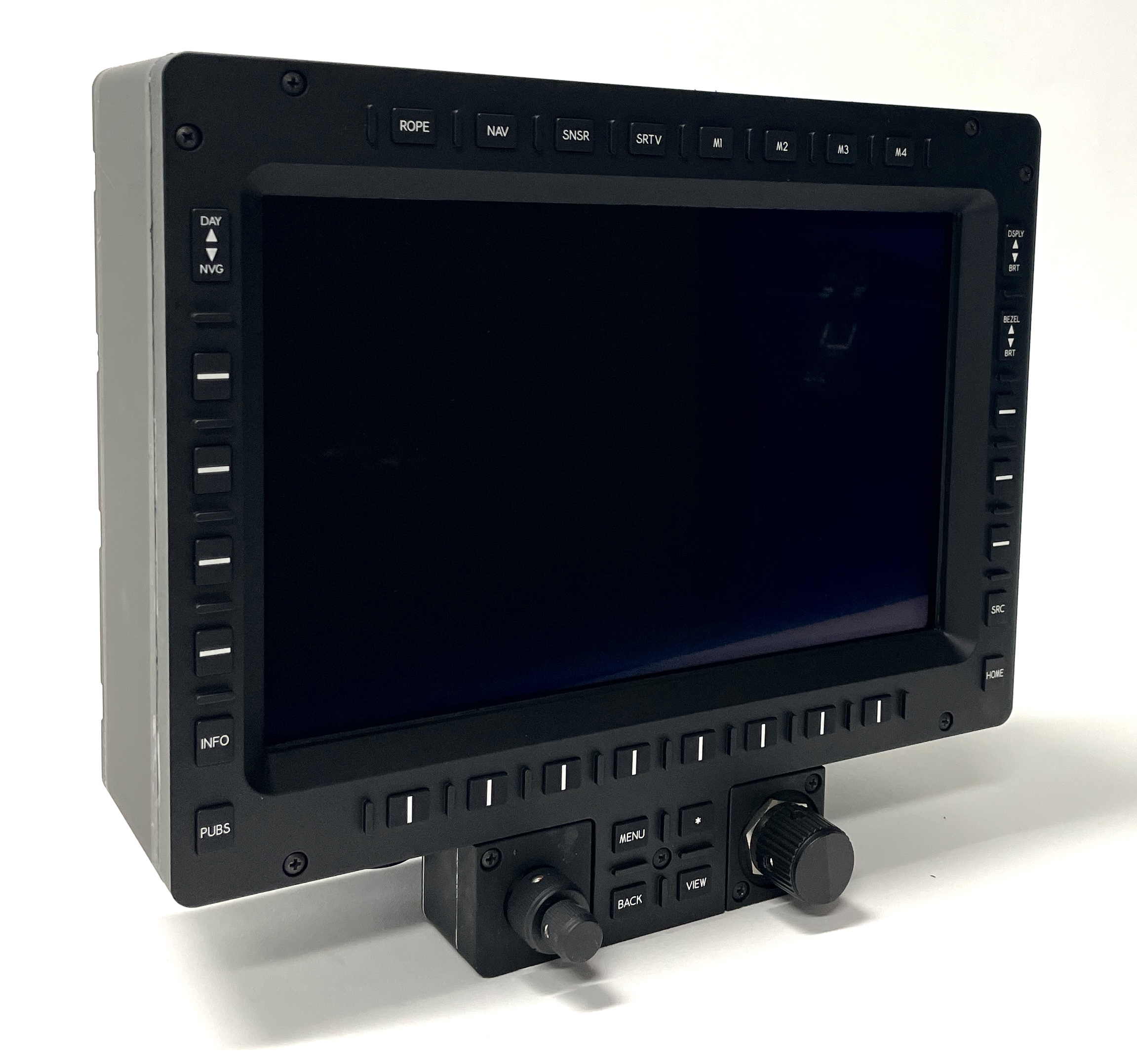

IEE 10.1" Multi-Function Display

What makes this 10.1" MFD shine above the rest is the utilization of a high performance, heavy-duty, full color, very high bright WUXGA AMLCD. Designed for fixed and rotary wing airborne applications, this very wide viewing angle display features a selectable dual-mode LED backlight for sunlight readable daytime operation and NVIS-compatible operation for night.

IEE uses an index-matched optical bonding technique to create an optical stack with an integral heater for low-temperature operations, EMI shielding, and a cover glass featuring anti-reflective/anti-glare treatments.

A programmable 8-way joystick and encoder knobs complement the bezel keys to provide a full-featured operator interface supporting the control of a wide range of applications. This 10.1" rugged display is housed in an all-aluminum bezel that is electrically and environmentally sealed to protect against foreign objects and liquid penetration through the front fascia.

Download Register

Product Features and Specifications

  • 10.1" WUXGA, (1920x1200) color TFT LCD display
  • Brightness: 1,100 cd/m2 typical
  • Contrast Ratio: 800:1
  • Video Interface: 2 x DVI-D, 2 x HD-SDI (loop-through)
  • Viewing Angle: ± 85º H / ± 85º V
  • Operating Temp -40ºC to +55ºC
  • EMI: MIL-STD-461F
  • Environmental: MIL-STD-810F
  • Power Input: 28VDC (MIL-STD-704)
  • Communication Interface: RS-422
  • 13 programmable bezel push-buttons, with tactile feedback and NVIS filtered backlight (MIL-STD-3009)
  • On-screen display (OSD) functions controlled using Bezel Keys
  • 3-way rotary switch for OFF/NIGHT/DAY, one brightness encoder, two programmable dual-concentric encoders and one 8-way joystick
